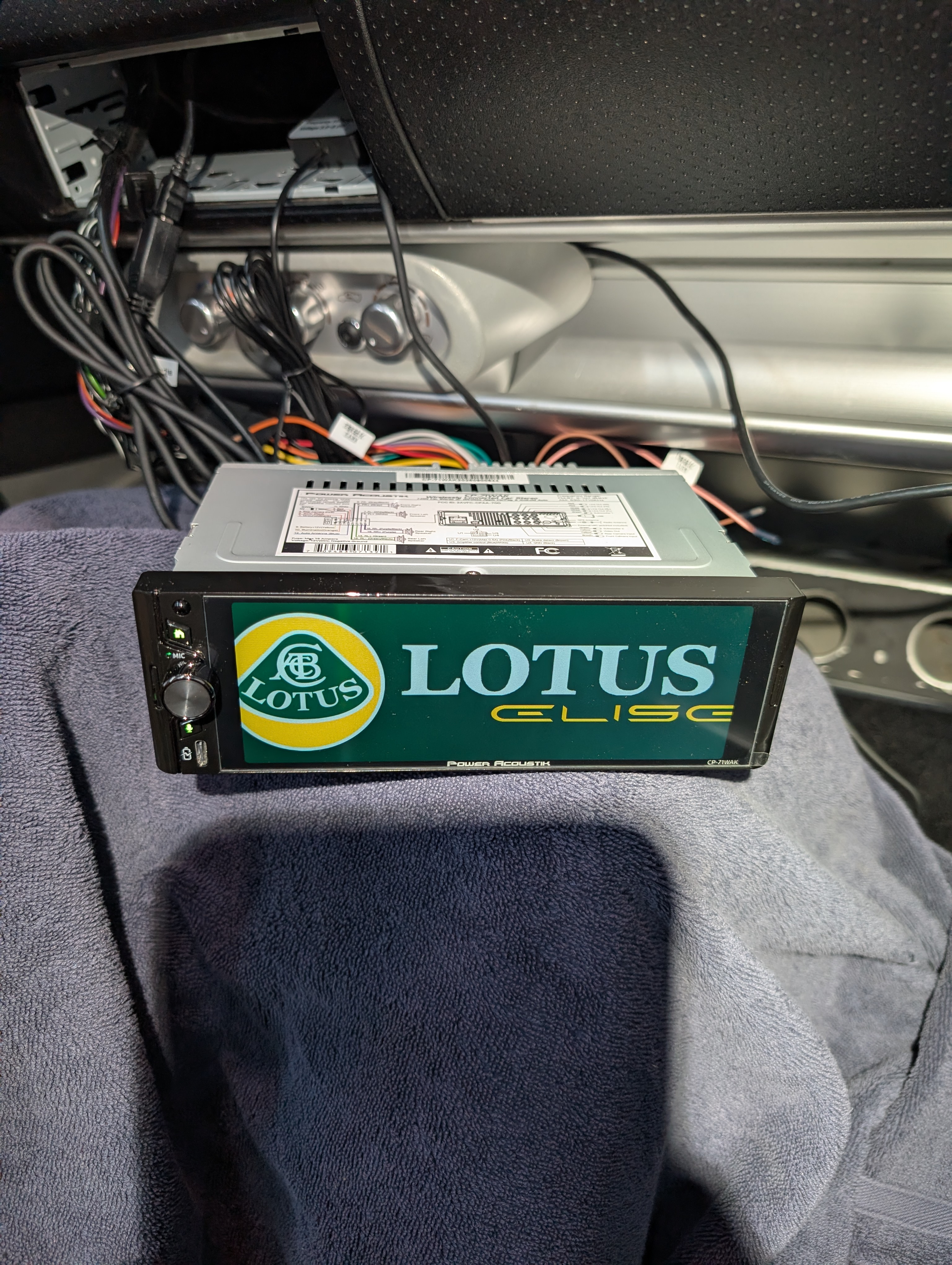

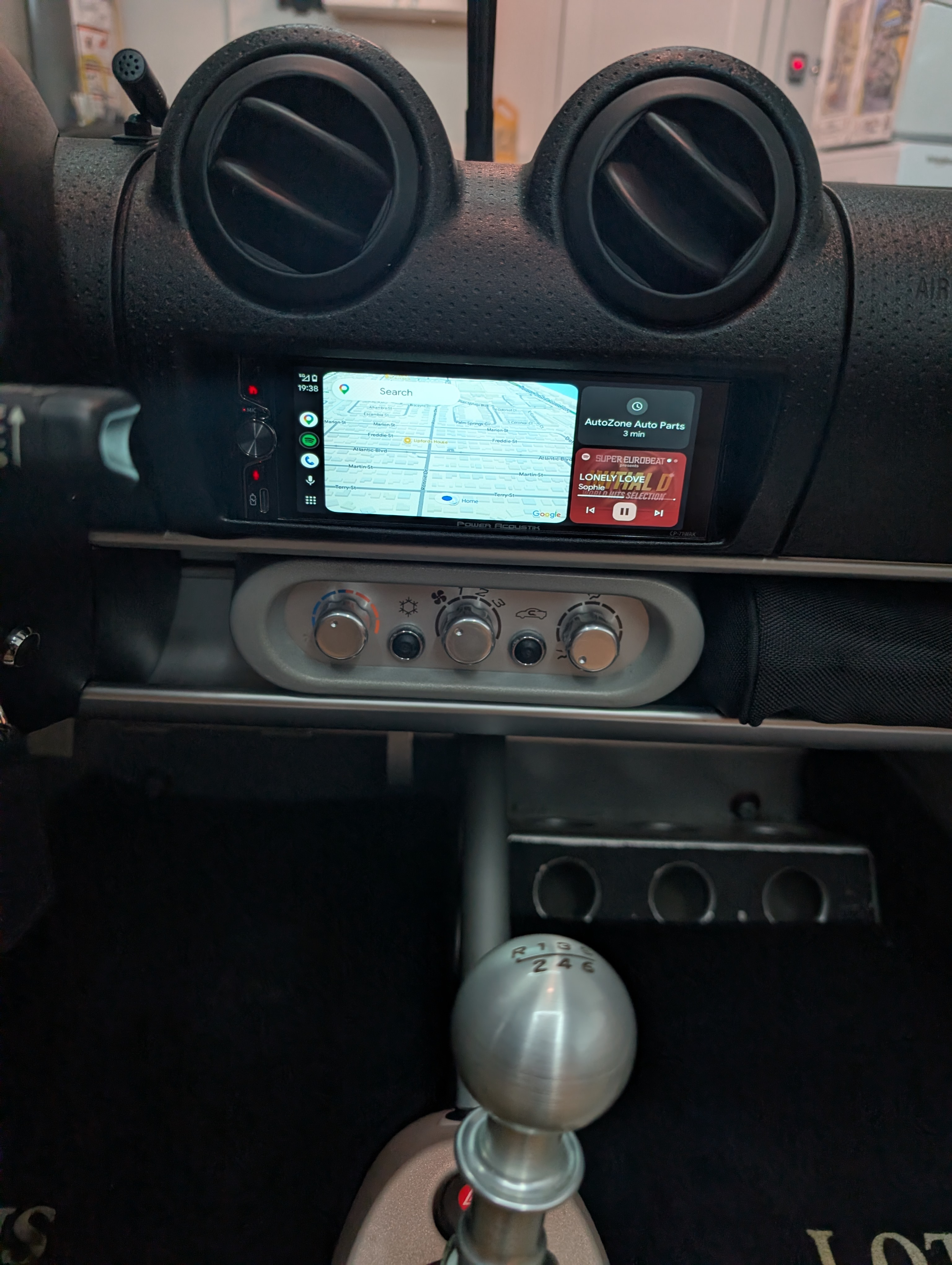

I recently bought a Lotus Elise, and the head unit that came with it was a flip out screen which hit the windshield wiper when it opened. I liked the Power Acoustik Headunit I had in my Ferrari 360, and decided to put the newer version of that stereo in. The new version has a volume knob instead of a volume up and down button.

Radio Radio

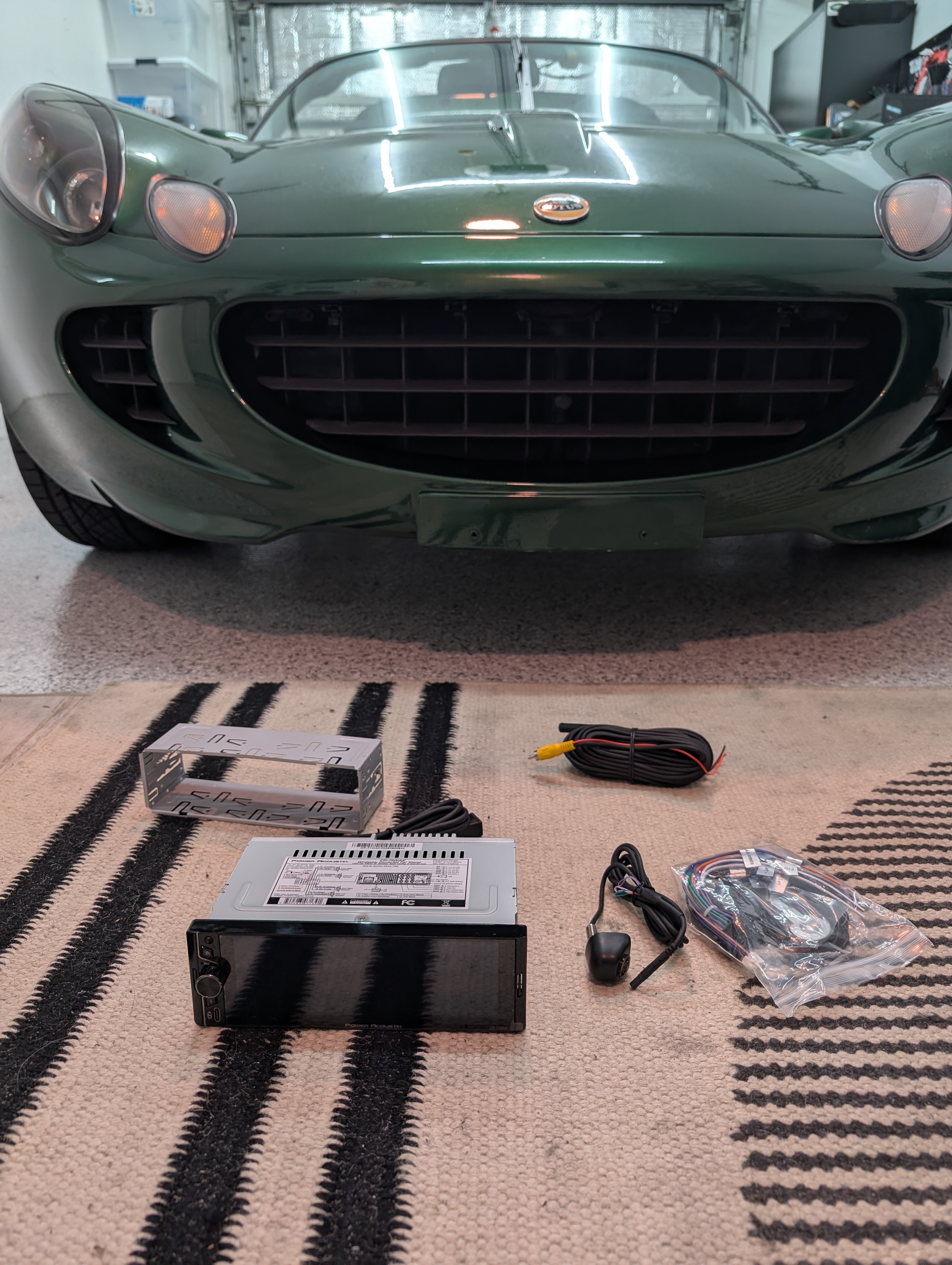

I also installed a backup camera, which took the majority of the install time due to running wires to the rear of the car. The Elise has some pretty bad blind spots, so I wanted to upgrade to having a backup camera, Android Auto, and single DIN to not block the air vents.

Radio Radio Radio

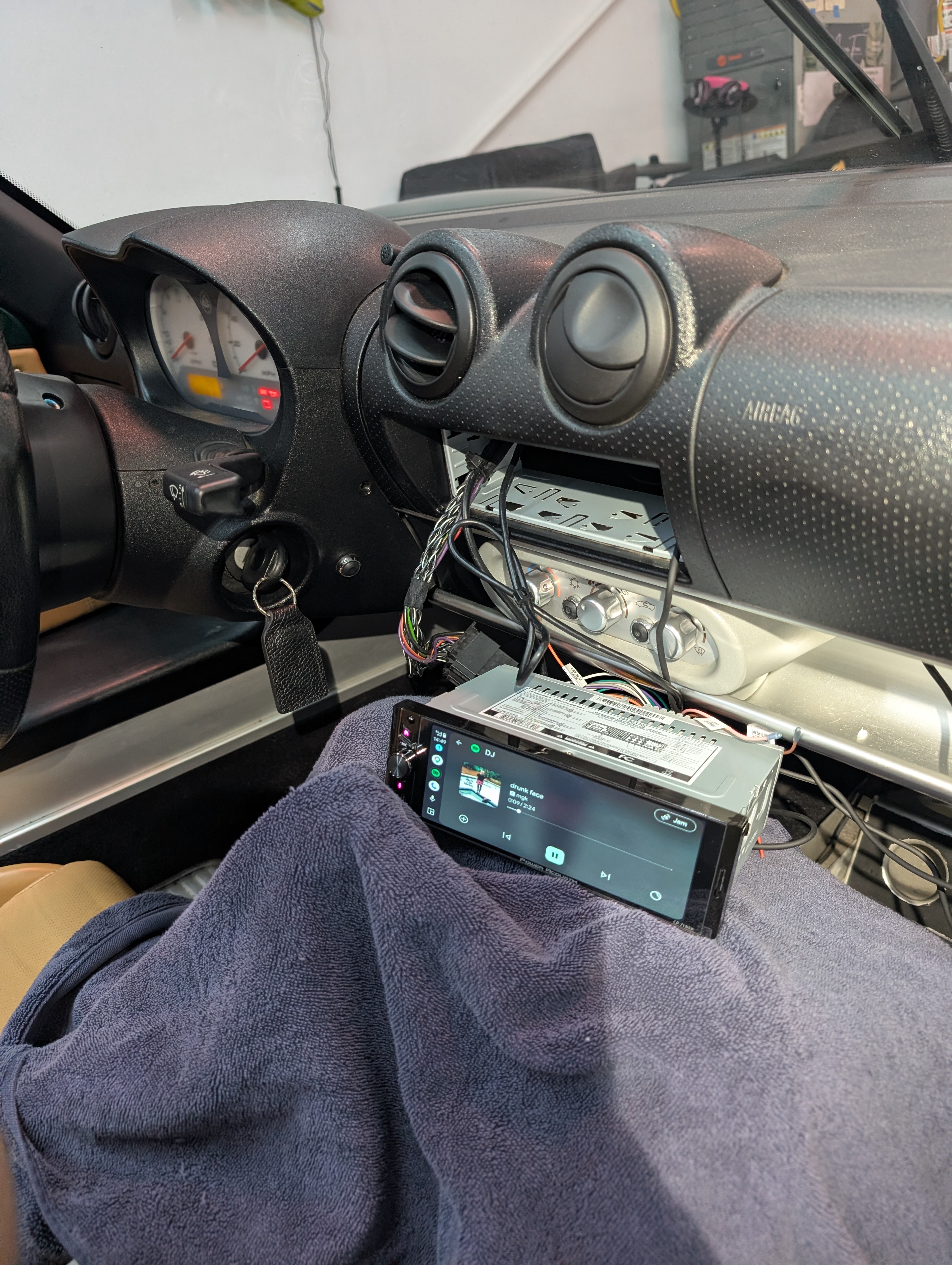

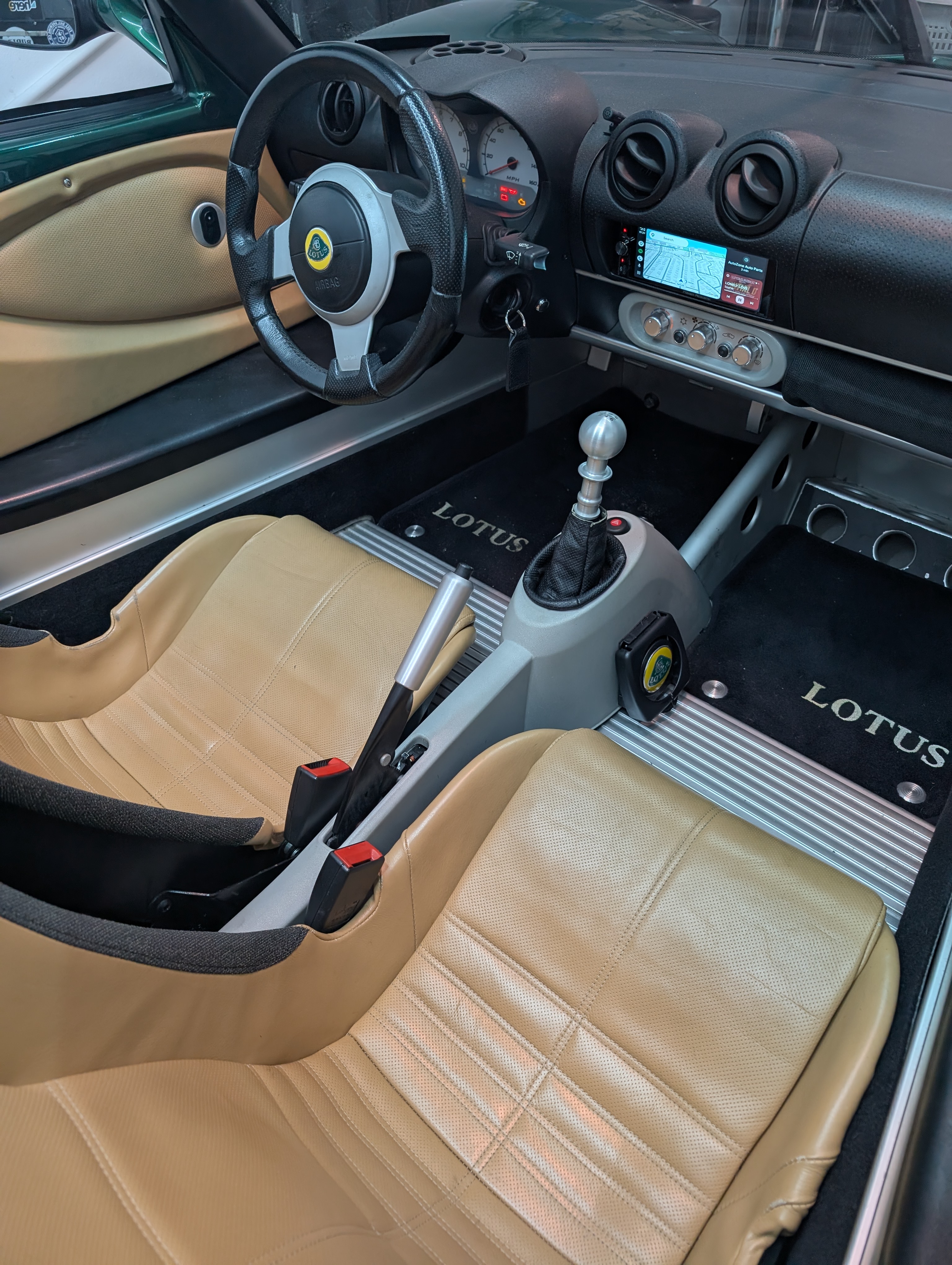

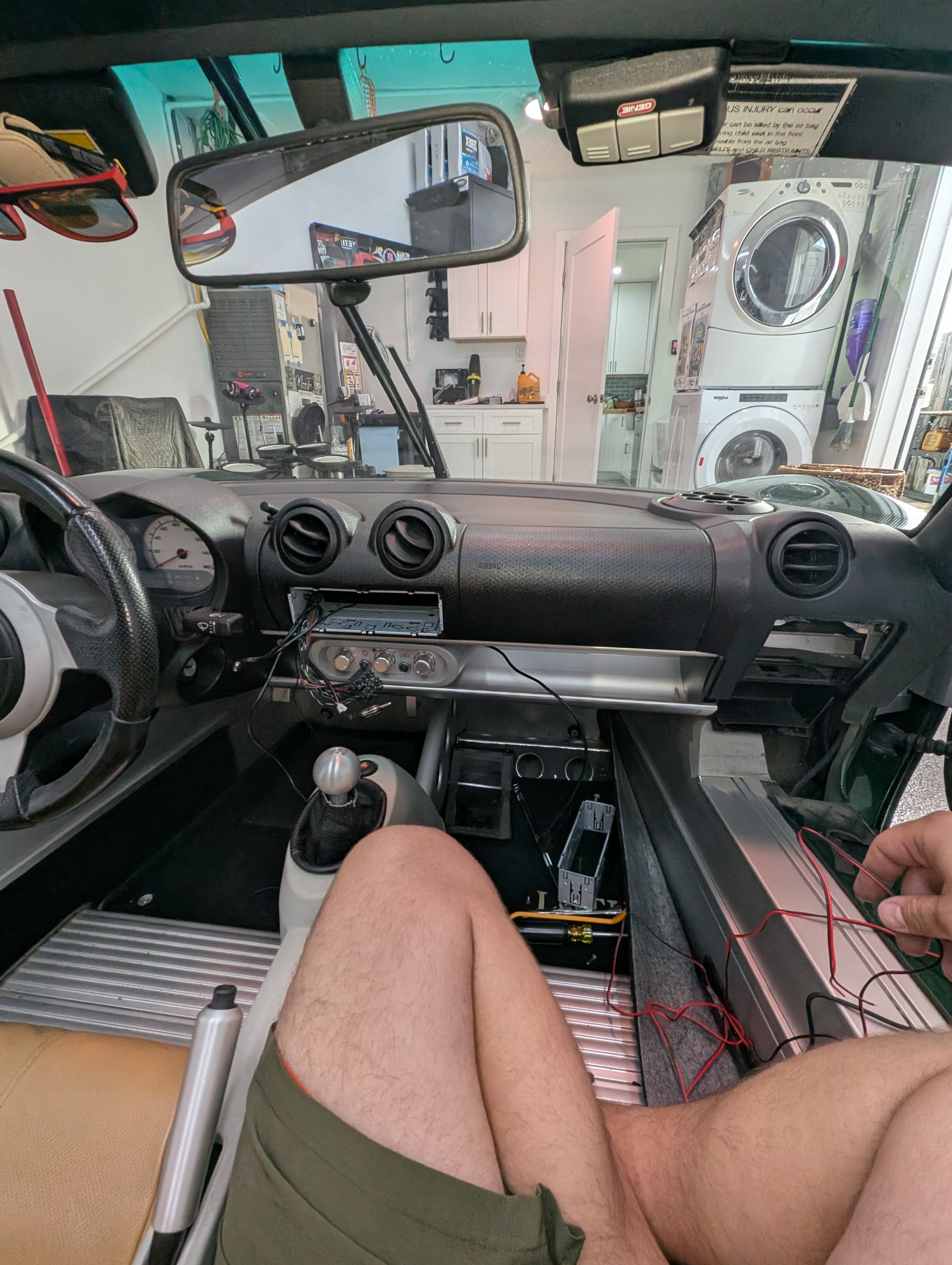

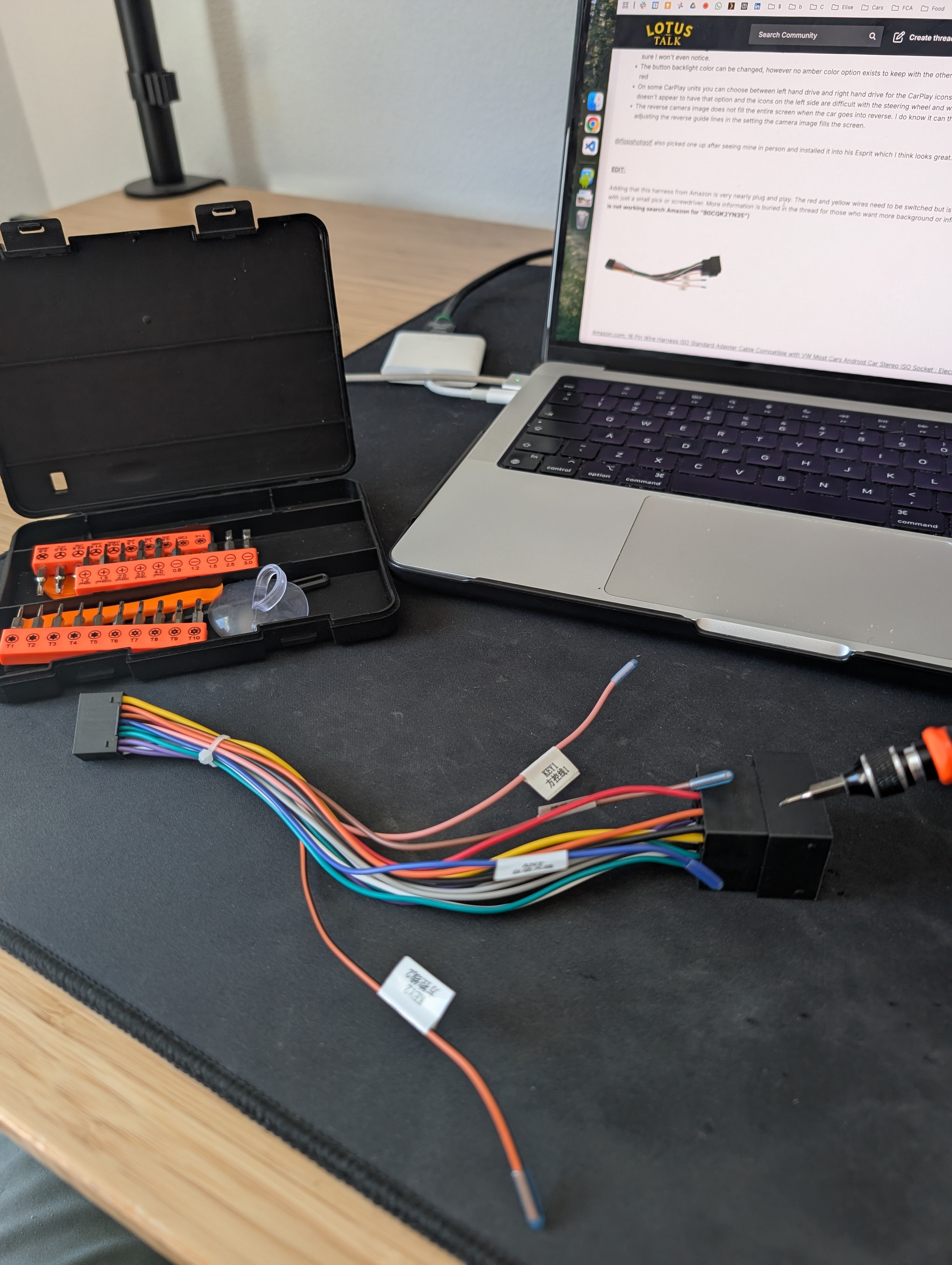

The install of the head unit was easy, it was a single wiring harness to buy, two wires to swap on that harness (swap the red and the yellow on the ISO connector), and it just worked!

Radio

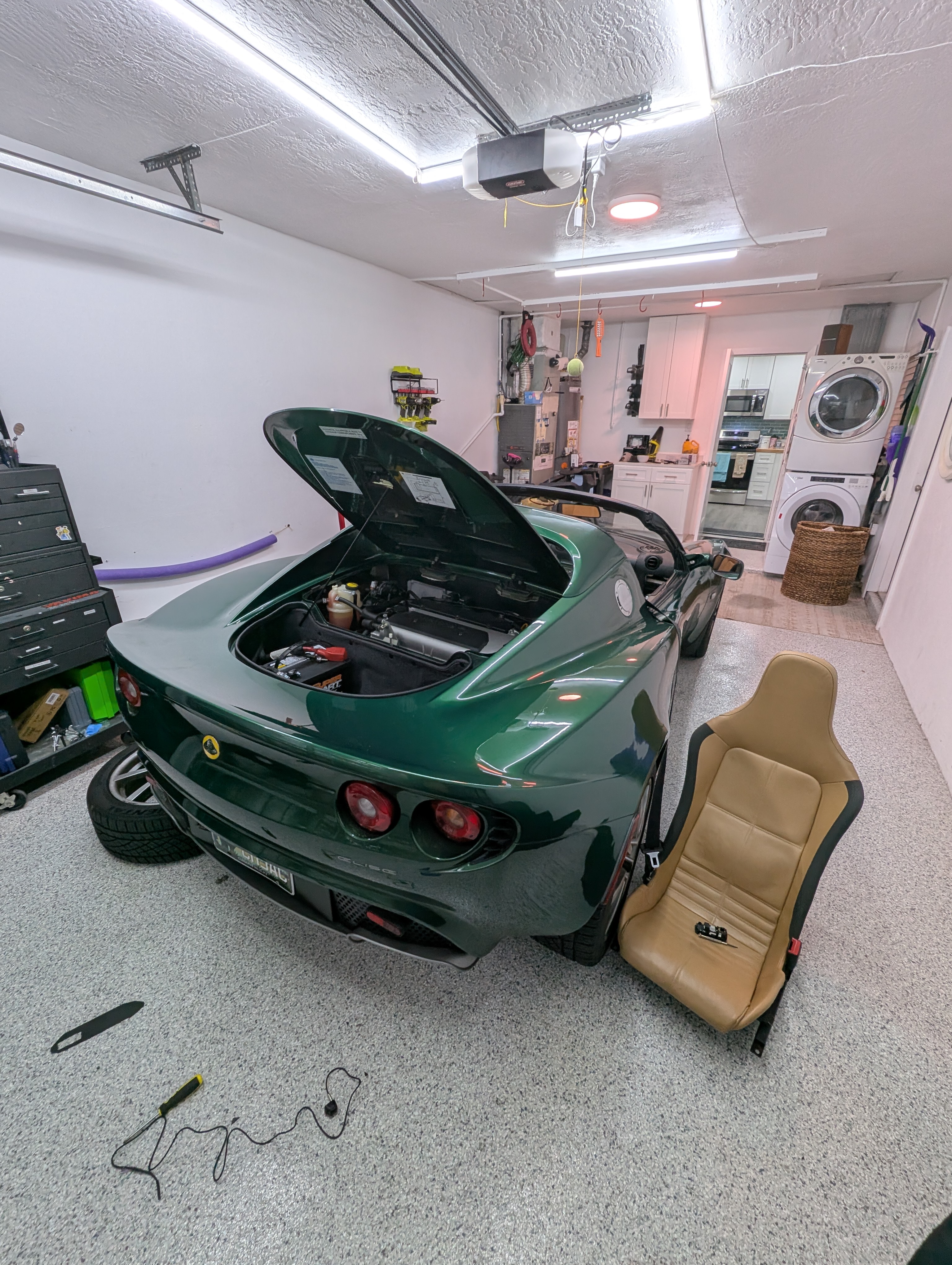

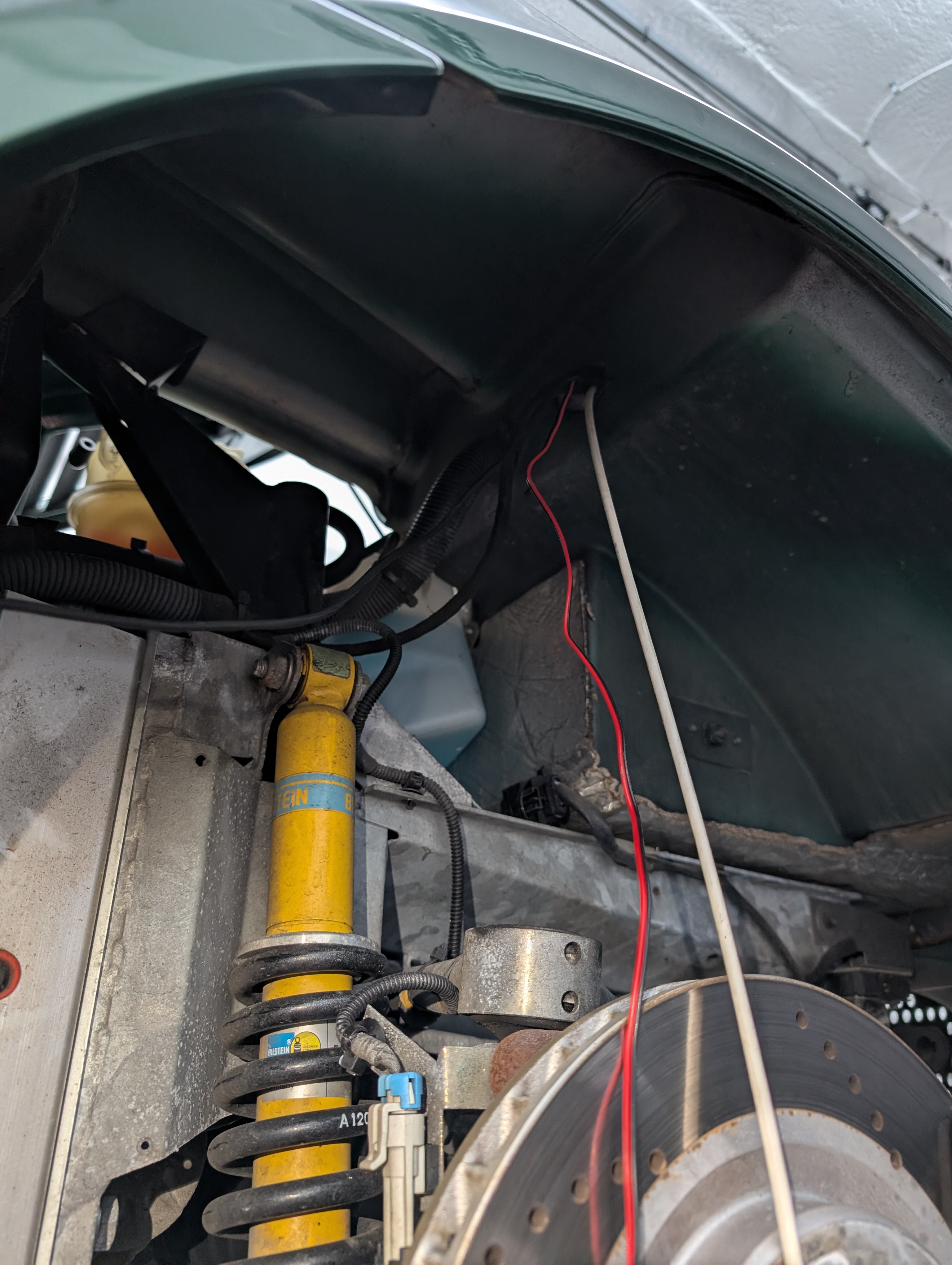

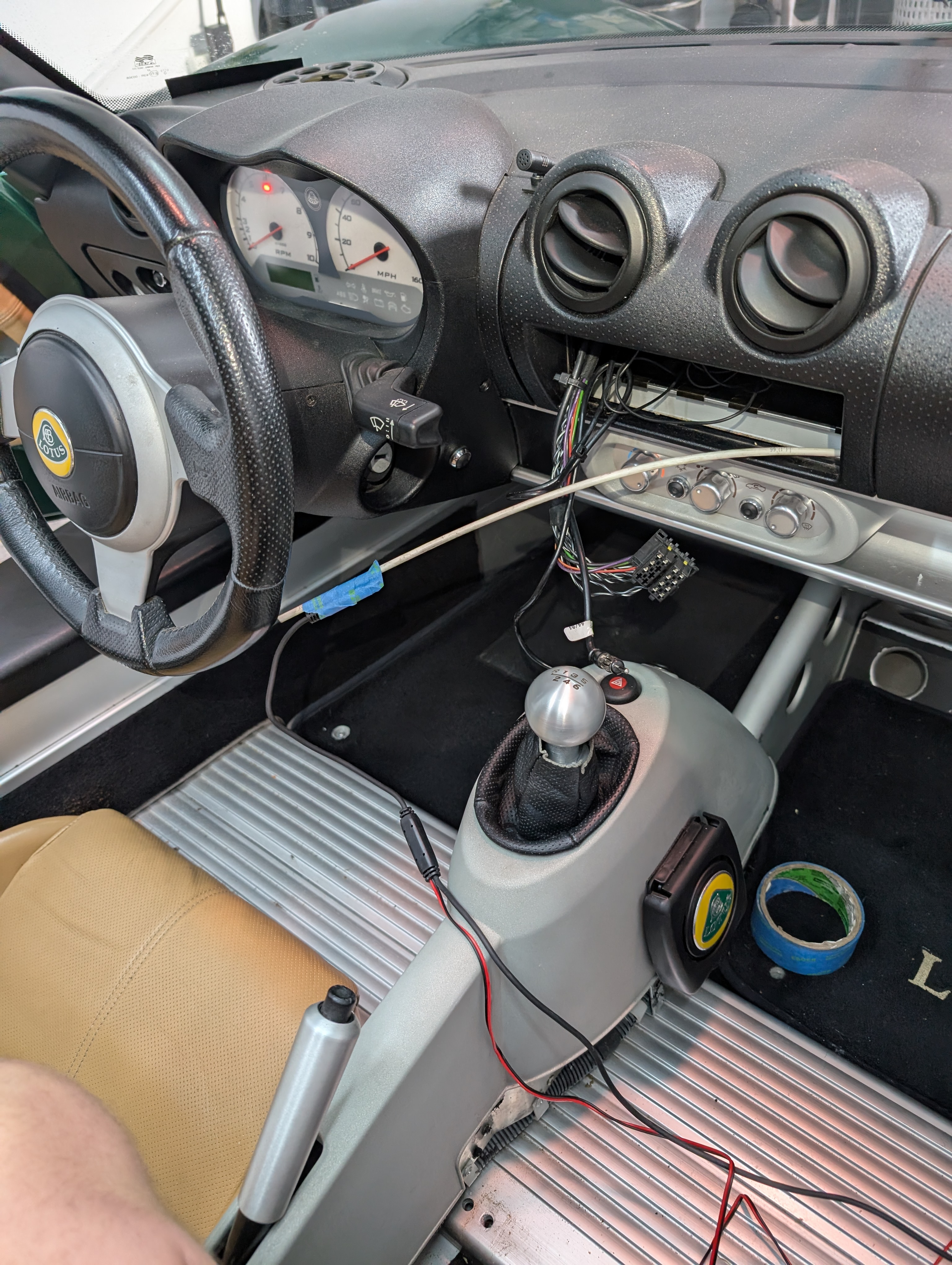

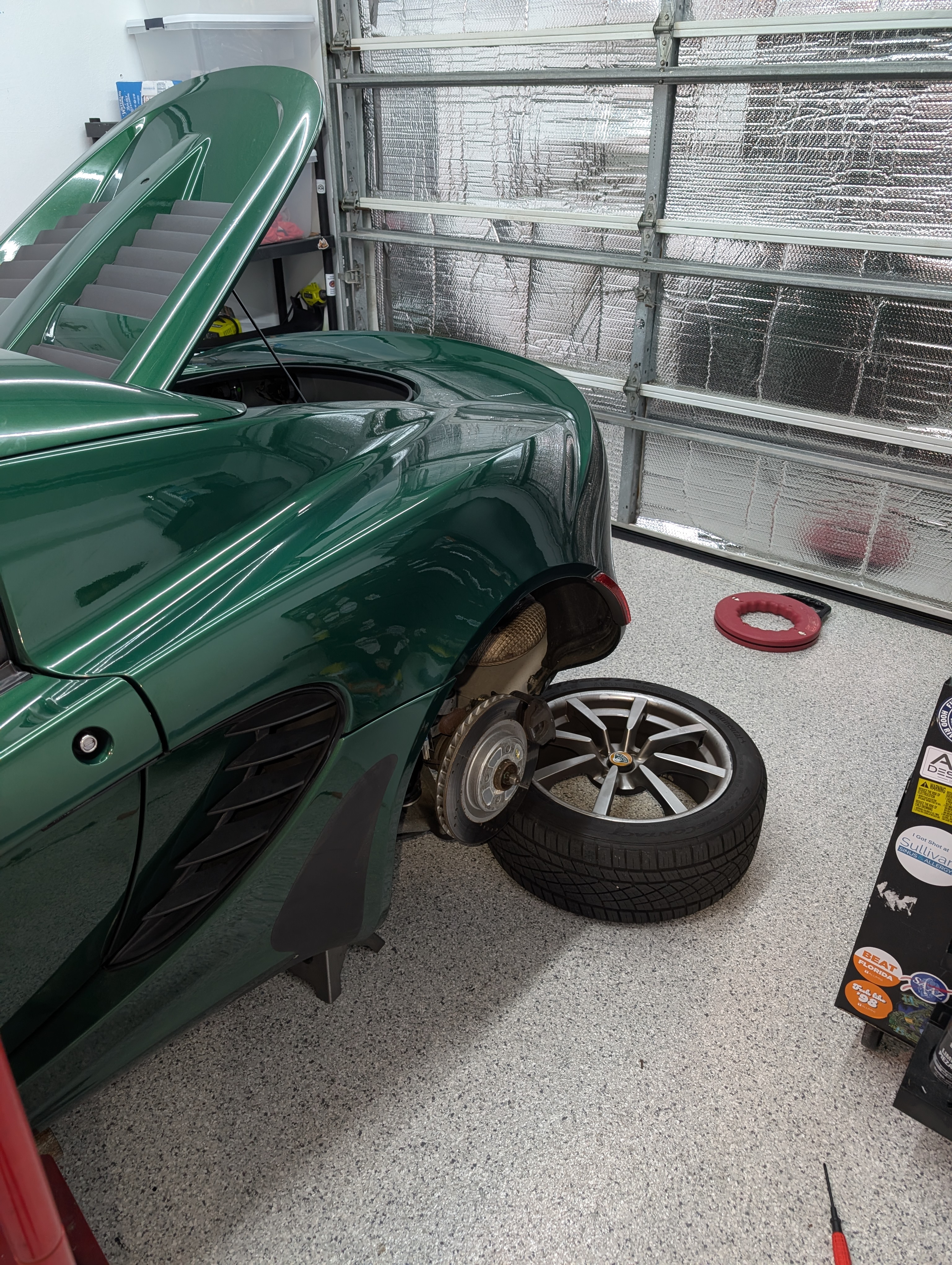

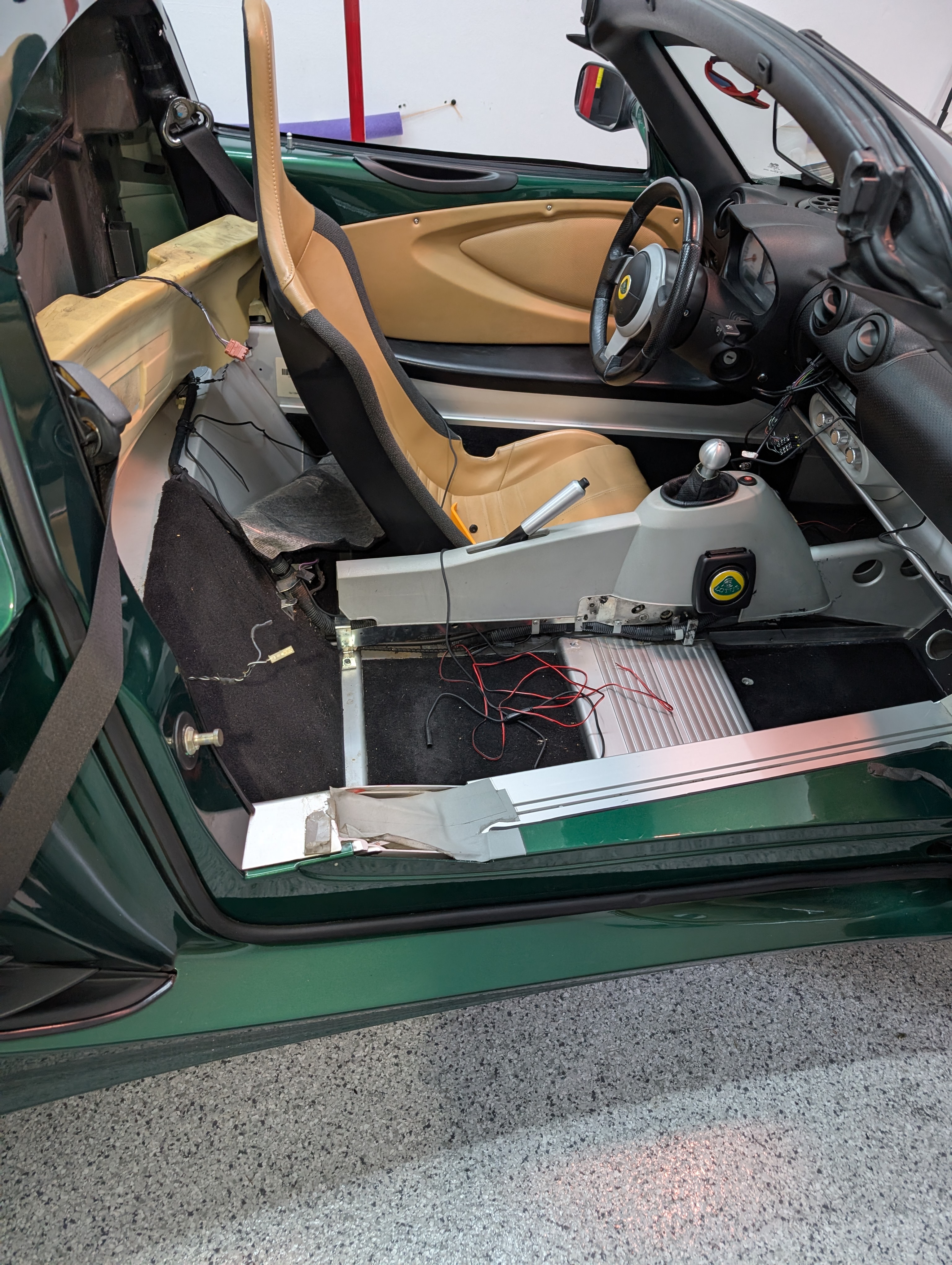

For the reverse camera, I ran the wires under the dash to the center tunnel (you don’t have a center console on an Elise), then under the rear carpet, through a firewall behind the driver’s seat into the engine bay, through the engine bay into a grommet into the trunk area, and finally into another grommet near the license plate lights. Having a fish tape was required and super helpful.

Radio Radio Radio

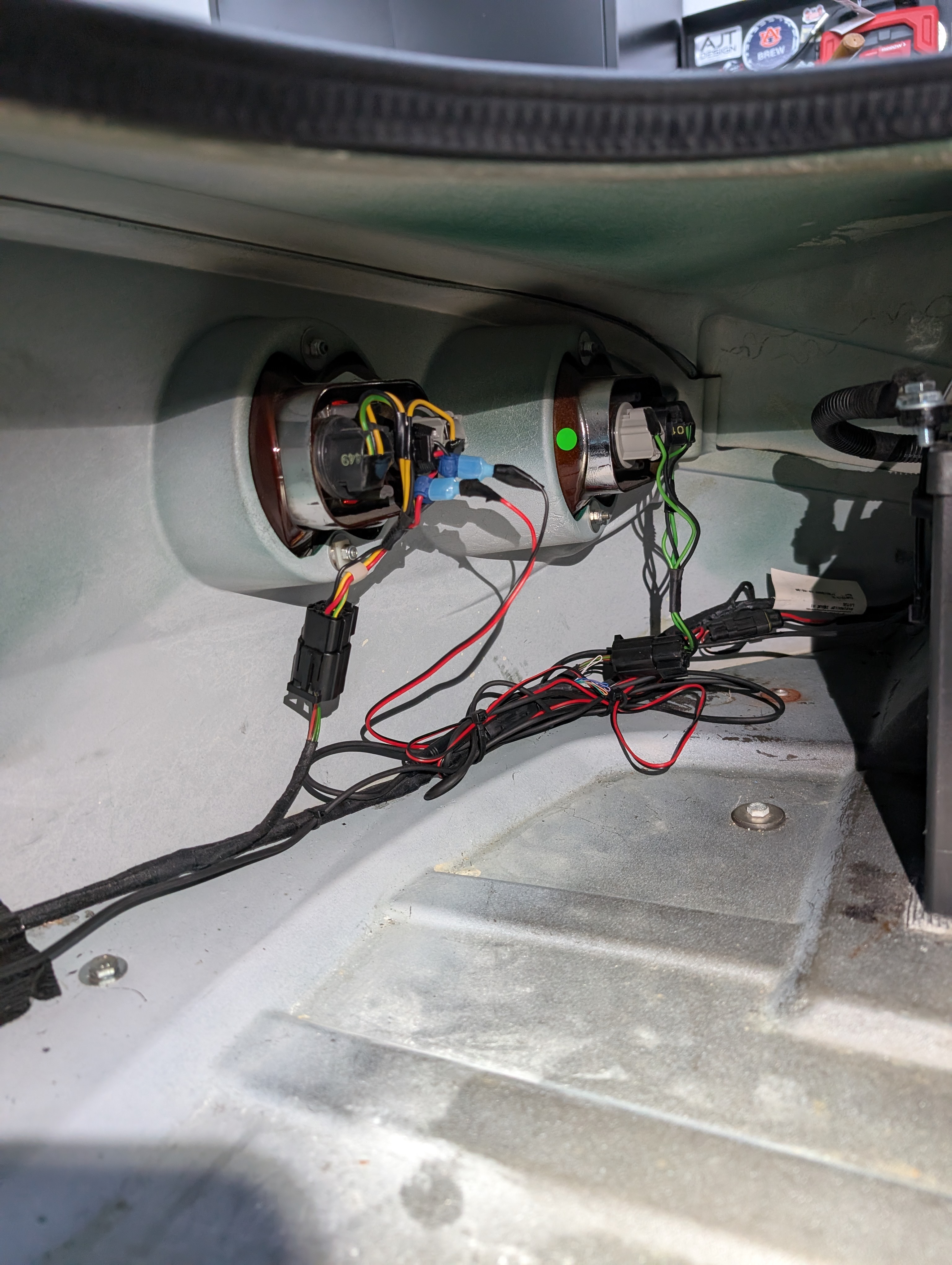

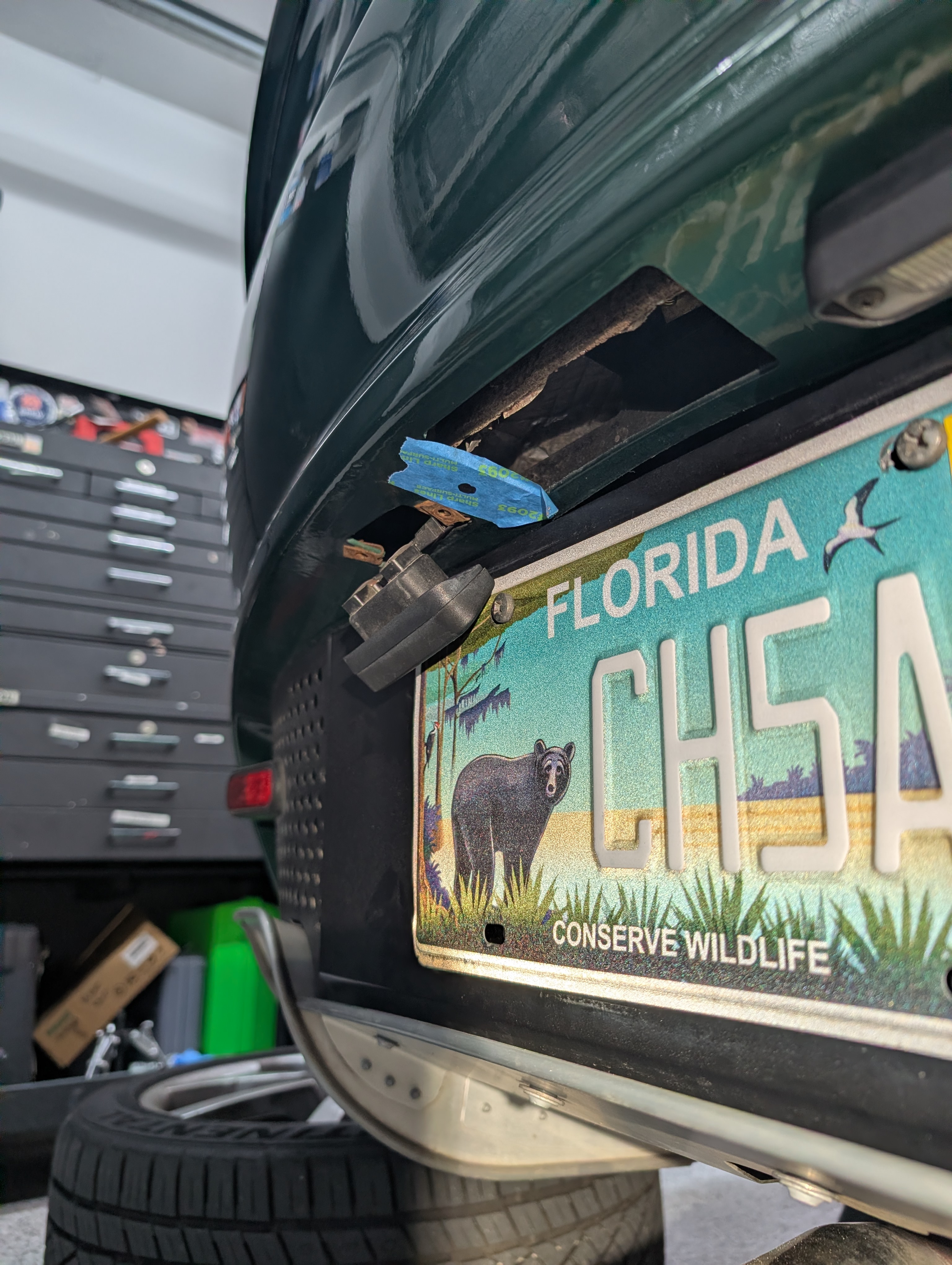

I wired the power and ground into the reverse lights, which are near the license plate lights using 2x t-taps.

Radio

I wired the reverse trigger of the head unit to the reverse line on the wiring harness I bought using a heat shrink connector, so it automatically turns the reverse camera on when you shift into reverse.

Radio

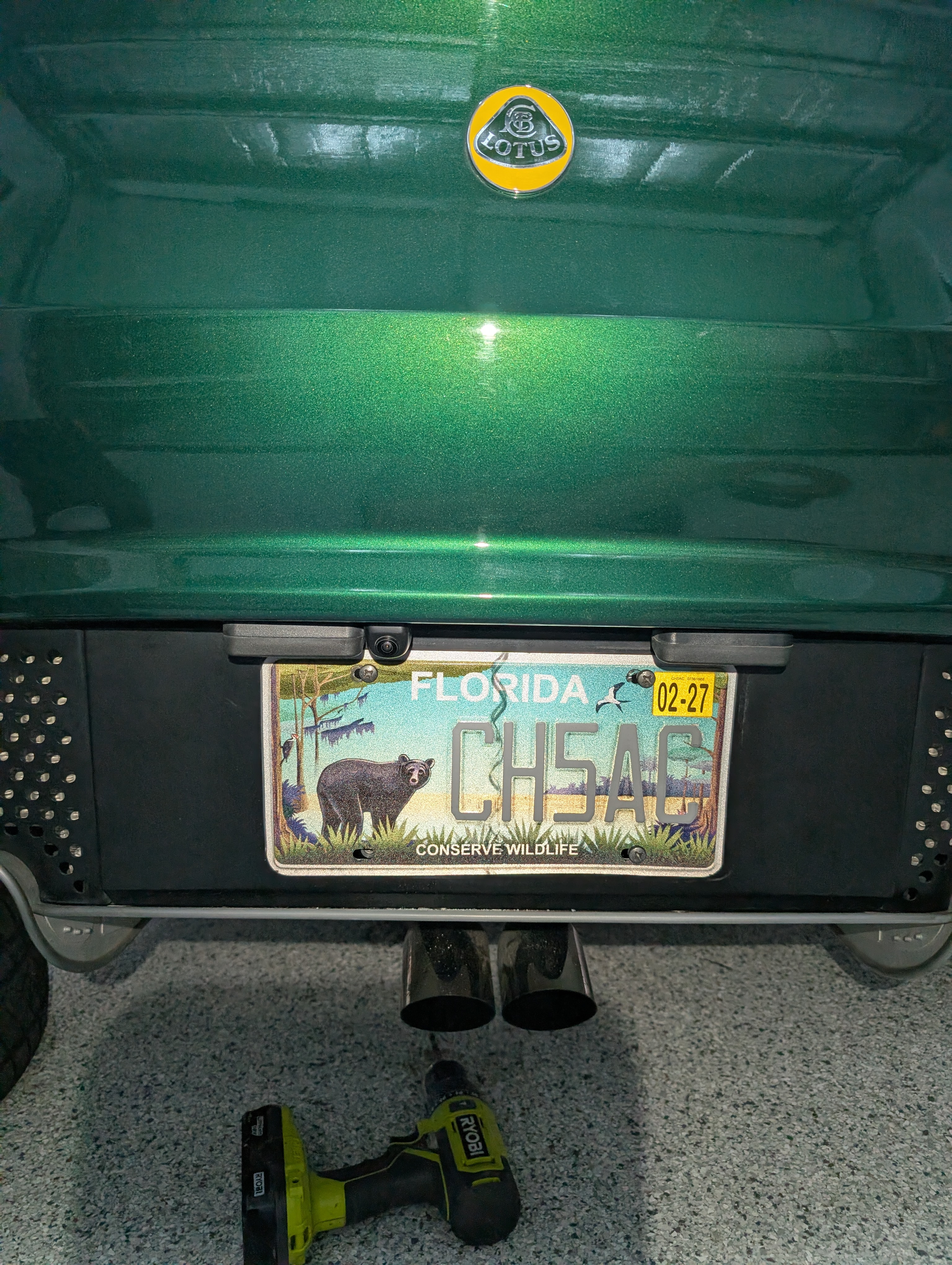

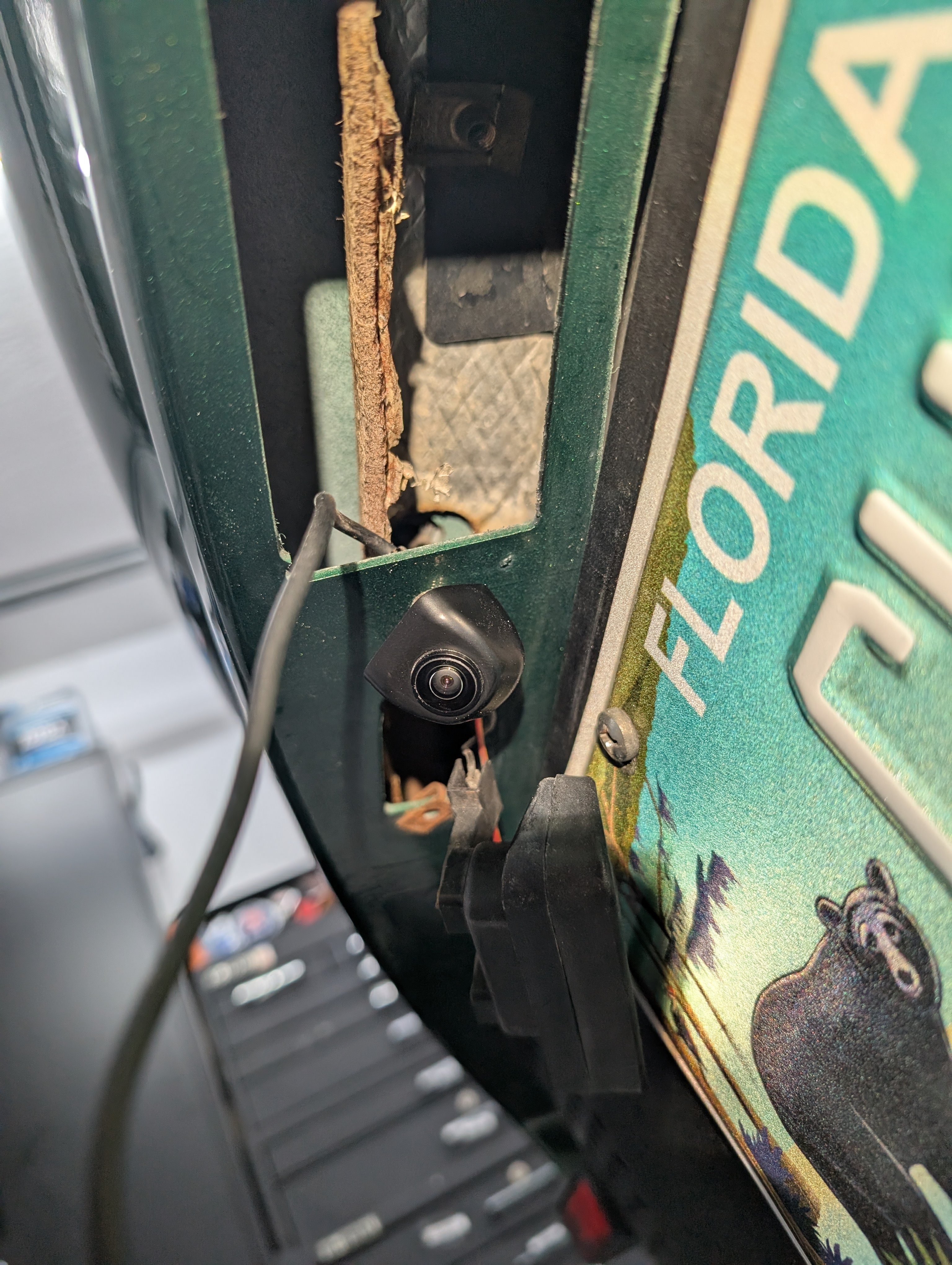

And of course, had to drill a small hole for the reverse camera.

Radio Radio Radio

And finally, I sealed it all up. I used cloth wiring tape on all the wiring that runs through the engine bay for heat prevention.

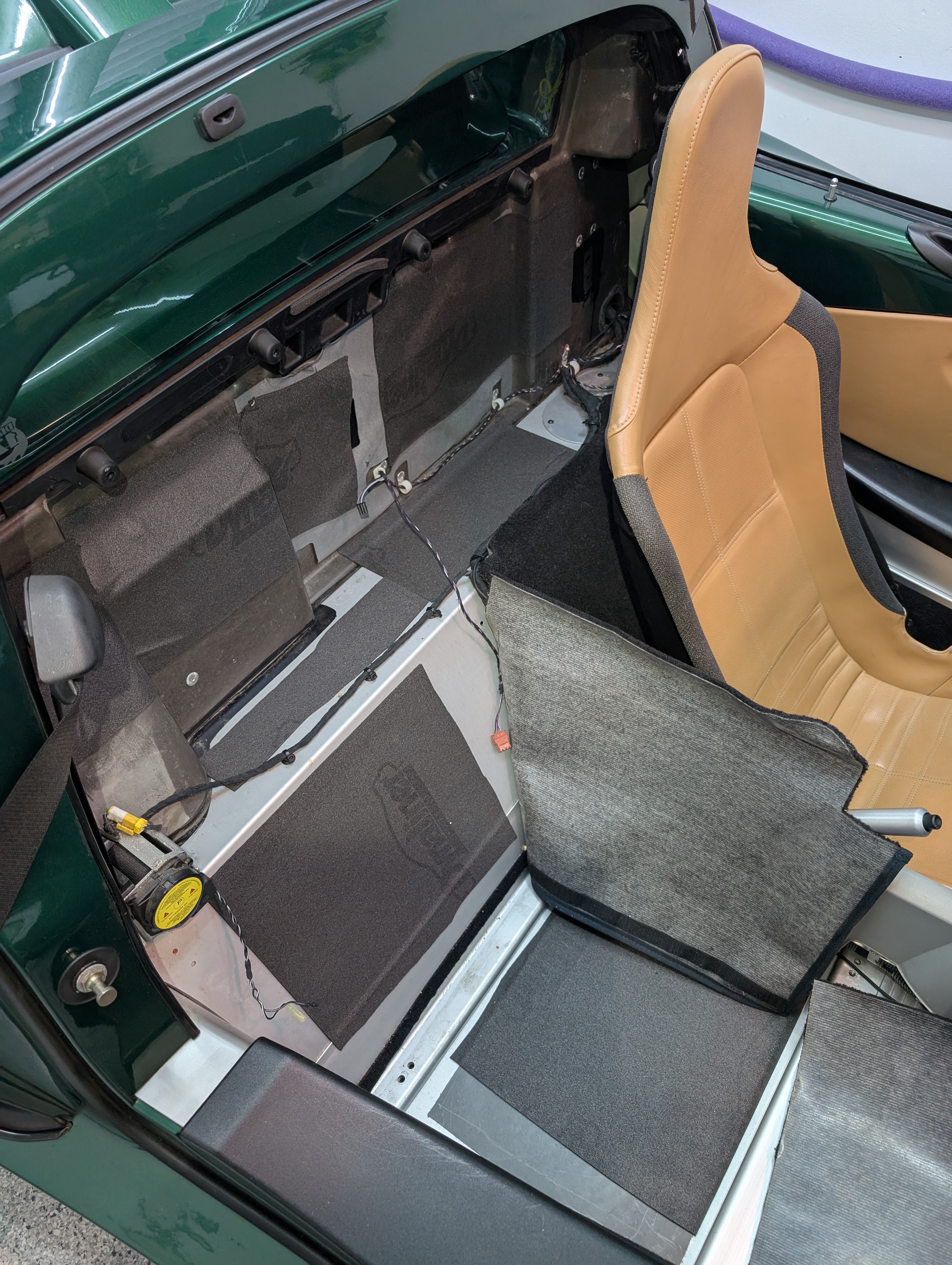

I added some Dynamat I had leftover on the firewall and under the passenger seat. I found a floor mat trim button I was missing under the seat too! And a quarter.
